Cutaway Rock Crusher Scale Model
WhiteClouds created a cutaway rock crusher scale model that makes the industrial machine's internal structure and crushing process visible from the outside.
- Project
- Rock crusher cutaway model
- Purpose
- Show internal equipment
- Subject
- Industrial crushing system
- Application
- Physical demonstration display

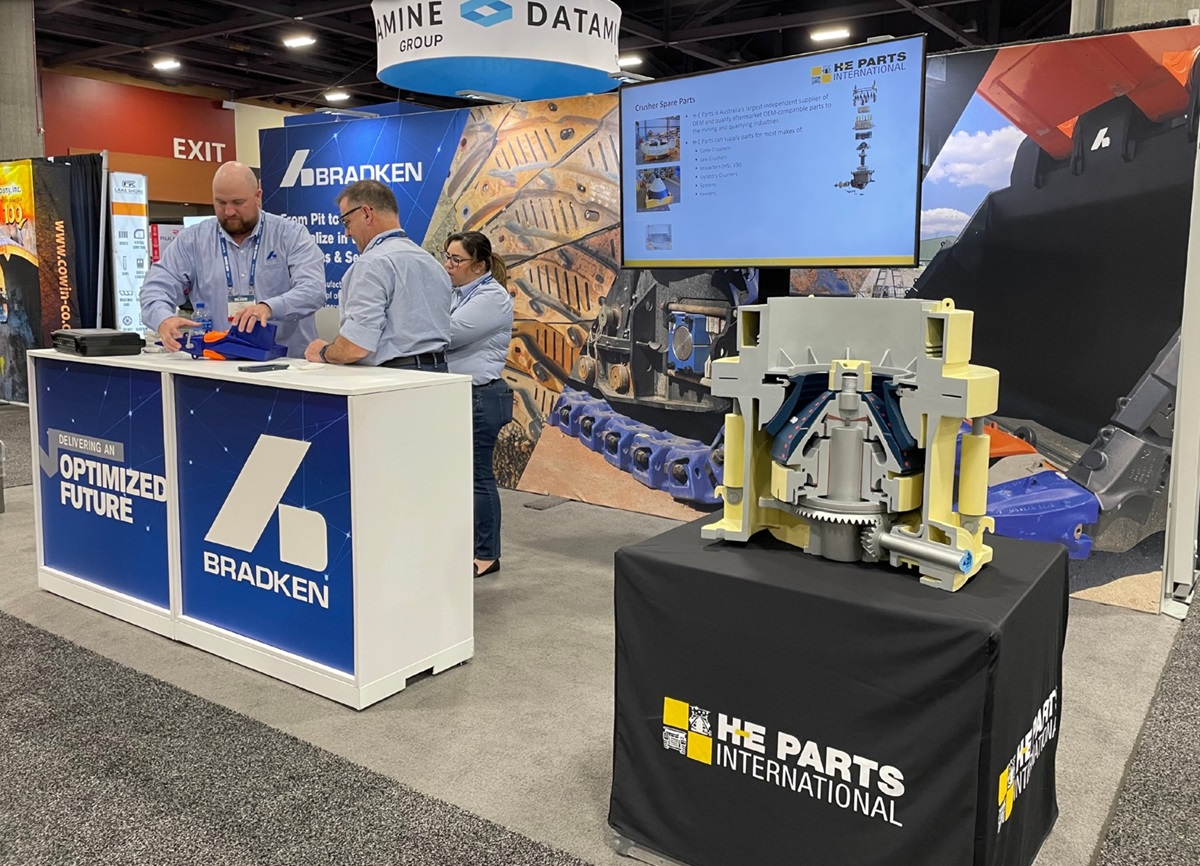

WhiteClouds created a cutaway rock crusher scale model that exposes the equipment's internal system. Rather than presenting only the machine's exterior housing, the model opens the body to show the central crushing chamber, shaft, mechanical components, and surrounding structure. The completed cutaway model was used in an industrial exhibit.
Opening the machine to show its internal components
Full-size rock-crushing equipment contains important working relationships that are difficult to see when the machine is assembled. The cutaway retains the crusher's outer housing while exposing the central cone, chamber, drive components, and internal supports.
Color separation helps distinguish adjacent parts within the model. Neutral exterior surfaces frame blue, red, black, and metallic components, allowing viewers to trace the arrangement without requiring the full-size machine to be present.
A compact physical reference for a complex machine
The completed cutaway converts an enclosed industrial assembly into a physical model that can be viewed from the front and side. Its exposed system provides a direct visual explanation without requiring an audience to interpret a flat sectional drawing alone.
The completed cutaway presents the represented crushing system as a physical visual reference.
